MPT-200D Series

1 ~ 4 Output Medical Type

Features

 Universal AC input / Full range
 Low leakage current < 180A
 Protections: Short circuit/ Overload / Over Voltage / Over temperature
 Free air convection for 140W and forced air convection for 200W
 ANSI/AAMI ES60601-1 medical safety approved
 With power good and fail signal output
 Built-in remote ON-OFF control
 Built-in remote sense function
 Fixed switching frequency at 100KHz
 3 years warranty

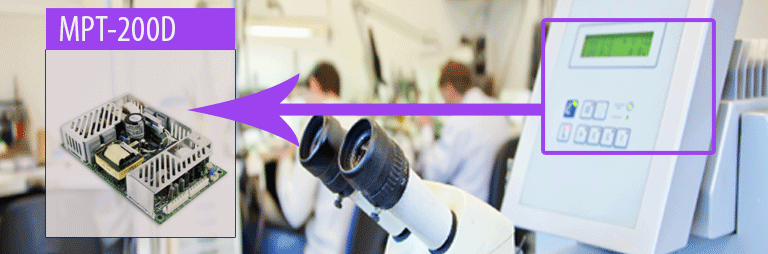

MPT-200D

MODELMPT-200D
OUTPUT VOLTAGE5V24V12V
RATED CURRENT20A3A2A

OUTPUT CURRENT

MINIMUM LOAD4A0.3A0A
CONVECTION (max.)15A2.2A1A
WITH FAN(25CFM) 20A3A2A
PEAK LOAD WITH 25 CFM FAN24A3.6A2.4A
RIPPLE & NOISE (Max.) 80mVp-p180mVp-p80mVp-p
VOLTAGE TOLERANCE±2.0%±8.0%±5.0%
LINE REGULATION±0.5%±1.0% ±0.5%
LOAD REGULATION±1.0%+5.0%+1.0%
EFFICIENCY(Typ.)81%
