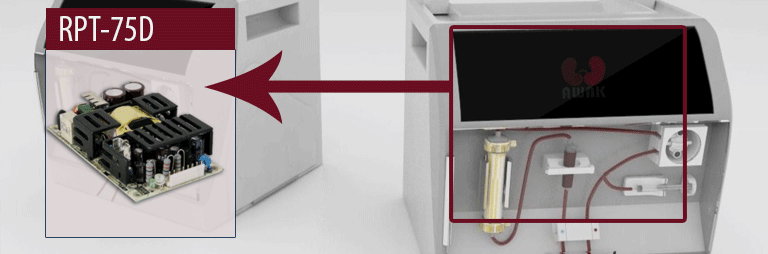

RPT-75D series
72W Reliable Triple Output Medical Grade
Features
5″x3″ compact size
Medical safety approved(2 x MOPP) according to ANSI/AAMI ES60601-1 and IEC/EN60601-1
72W convection, 100W force air
EMI class B for class 1 configuration
Extremely low leakage current
Protections: Short circuit/ Overload / Over Voltage
Lifetime > 140K hours
3-year warranty
RPT-75D series
| MODEL | RPT-75D | |||
|---|---|---|---|---|
OUTPUT | OUTPUT NUMBER | CH1 | CH2 | CH3 |
| DC VOLTAGE | 5V | 24V | 12V | |
| RATED CURRENT | 5A | 1.5A | 1A | |
| CURRENT RANGE | 0.6 ~ 7A | 0.1 ~ 2A | 0.1 ~ 1A | |
| RATED POWER | 73W | |||
| PEAK LOAD(10sec.) | 95W | |||
| RIPPLE & NOISE (max.) | 80mVp-p | 200mVp-p | 120mVp-p | |
| VOLTAGE ADJ. RANGE | CH1:4.75 ~ 5.5V | |||
| VOLTAGE TOLERANCE | ±2.0% | ±8.0% | ±8.0% | |
| LINE REGULATION | ±0.5% | ±1.0% | ±1.0% | |
| LOAD REGULATION | ±1.5% | ±3.0% | ±3.0% | |
| SETUP, RISE TIME | 500ms, 30ms/230VAC 500ms, 30ms/115VAC at full load | |||
| HOLD UP TIME (Typ.) | 90ms/230VAC 20ms/115VAC at full load | |||
INPUT | VOLTAGE RANGE | 90 ~ 264VAC 127 ~ 370VDC | ||
| FREQUENCY RANGE | 47 ~ 63Hz | |||
| EFFICIENCY(Typ.) | 79% | |||
| AC CURRENT (Typ.) | 1.5A/115VAC 1A/230VAC | |||
| INRUSH CURRENT (Typ.) | COLD START 25A/115VAC 50A/230VAC | |||
| LEAKAGE CURRENT | Earth leakage current < 150 A/264VAC , Touch current < 100 A/264VAC | |||
